mk 6 special technical advice needed
-
Gary Andrews
- Posts: 34
- Joined: Mon May 23, 2016 7:47 am
mk 6 special technical advice needed
I've just joined forum .
getting close to finishing of my mk 6 special apparently shes not been
on road since around 1955
I've got a few issues I could do with some advice
shes 1948 early brake type
firstly mec servo missing do I need a servo or not ? and if so would
a hydraulic one on front wheels only be ok to fit. im rod braked still at
rear.
Also i note the wear adjusting mech is missing in rear shoes is that
a problem ?.
I've just fitted o/s king pin kit but unsure what torque king pin
top nut should be cannot seem to find this in w m. can anyone give
assistance please.
Gary
getting close to finishing of my mk 6 special apparently shes not been
on road since around 1955
I've got a few issues I could do with some advice
shes 1948 early brake type
firstly mec servo missing do I need a servo or not ? and if so would
a hydraulic one on front wheels only be ok to fit. im rod braked still at
rear.
Also i note the wear adjusting mech is missing in rear shoes is that
a problem ?.
I've just fitted o/s king pin kit but unsure what torque king pin
top nut should be cannot seem to find this in w m. can anyone give
assistance please.
Gary
-
Christopher Carnley
- Posts: 2753
- Joined: Fri Nov 16, 2007 12:00 am
- Location: Yorkshire, United Kingdom
Hi Gary,
The front brakes only operate via the servo motor, there is no direct connection to the foot pedal.
The braking mechanism has to be complete.
There were no torque figures for these cars, just make sure that the bottom of the king pin does not protrude below the bottom edge of the housing, tighten the odd sized fine threaded nut until it feels right, then lock tab.
The king pins were subject to 4 varieties of heat treatment during manufacture, but the threads are not hardened.
The front brakes only operate via the servo motor, there is no direct connection to the foot pedal.
The braking mechanism has to be complete.
There were no torque figures for these cars, just make sure that the bottom of the king pin does not protrude below the bottom edge of the housing, tighten the odd sized fine threaded nut until it feels right, then lock tab.
The king pins were subject to 4 varieties of heat treatment during manufacture, but the threads are not hardened.
-
Gary Andrews
- Posts: 34
- Joined: Mon May 23, 2016 7:47 am
-
John Robins
- Posts: 1208
- Joined: Tue Jan 01, 1985 12:00 am
- Location: Staffordshire, United Kingdom
The Mk VI would do close to 100mph with 15cwt of pressed steel atop the chassis. Your special has the potential of high speed and needs to be able to stop accurately and quickly and I join Christopher in suggesting that the system needs to be complete.
The mechanical servo not only operates the front brakes by way of the hydraulics, but also augments the effort of the foot on the rear brakes. You may need less effort as your car is lighter than the saloon, but the drums would have been designed with the servo as part of the thinking and you may need to rethink all of it to change to a vacuum servo. There is a very clear diagram of the system in the workshop manual which would be worth a look.
Proof that the servo does a lot of work in the standard setup came home to me in the amazing difference in the brakes of my car after the servo was relined.
The mechanical servo not only operates the front brakes by way of the hydraulics, but also augments the effort of the foot on the rear brakes. You may need less effort as your car is lighter than the saloon, but the drums would have been designed with the servo as part of the thinking and you may need to rethink all of it to change to a vacuum servo. There is a very clear diagram of the system in the workshop manual which would be worth a look.
Proof that the servo does a lot of work in the standard setup came home to me in the amazing difference in the brakes of my car after the servo was relined.
-
Gary Andrews
- Posts: 34
- Joined: Mon May 23, 2016 7:47 am
thanks John
I dont have the original servo so cannot go the original complete root.
will set it up today and see how it feels without a servo otherwise might
go with hydraulic vacuum
I dont intend doing 100 in her. just pottering about 50 60 ish
having seen brian johnson go for a ride in 3 litre supercharged car with
only rear brakes Im hoping mine will be ok providing you drive it
sensibly .
Im guessing that wo cars did not have servos just bigger drums
I dont have the original servo so cannot go the original complete root.
will set it up today and see how it feels without a servo otherwise might
go with hydraulic vacuum
I dont intend doing 100 in her. just pottering about 50 60 ish
having seen brian johnson go for a ride in 3 litre supercharged car with
only rear brakes Im hoping mine will be ok providing you drive it
sensibly .
Im guessing that wo cars did not have servos just bigger drums
-
James O'Neil
- Posts: 209
- Joined: Sat Sep 05, 2015 11:00 pm
- Location: County Durham, United Kingdom
Hi Gary,
Another point to bear in mind is that when the car is statiorary the front brakes are wholly ineffective (and indeed they do not begin to work until the car is moving at around 3 mph). An MOT tester trying to test the brakes using the normal set-up (car at rest and front wheels on rollers) would record that the front brakes were unserviceable. The car needs to be road tested, a decelerometer (usually a Tapley meter) being used to test brake efficiency.
Regards,
James
Another point to bear in mind is that when the car is statiorary the front brakes are wholly ineffective (and indeed they do not begin to work until the car is moving at around 3 mph). An MOT tester trying to test the brakes using the normal set-up (car at rest and front wheels on rollers) would record that the front brakes were unserviceable. The car needs to be road tested, a decelerometer (usually a Tapley meter) being used to test brake efficiency.
Regards,
James
Last edited by James O'Neil on Tue May 24, 2016 2:51 pm, edited 1 time in total.
-
John Robins
- Posts: 1208
- Joined: Tue Jan 01, 1985 12:00 am
- Location: Staffordshire, United Kingdom
-
James O'Neil
- Posts: 209
- Joined: Sat Sep 05, 2015 11:00 pm
- Location: County Durham, United Kingdom
John,
You are right, of course, the Jaguars you mention did have live rear axles, and good ones, too, with limited slip differentials. The Mark X was the first saloon with independent rear suspension, similar to the E-Type's, although (I think) without the inaccessible inboard disc brakes.
Given the current climate, I wonder how amenable the DVLA would be to approving a Jaguar axle on a Bentley special?
Best regards,
James
You are right, of course, the Jaguars you mention did have live rear axles, and good ones, too, with limited slip differentials. The Mark X was the first saloon with independent rear suspension, similar to the E-Type's, although (I think) without the inaccessible inboard disc brakes.
Given the current climate, I wonder how amenable the DVLA would be to approving a Jaguar axle on a Bentley special?
Best regards,
James
-
Gary Andrews
- Posts: 34
- Joined: Mon May 23, 2016 7:47 am
jag back ends have been used but im happy with the Bentley axle .
Ive trued up the shoes have a brake pedal that now seems good .
just been for a spin and everything ok car breaks reasonable no more
binding of brakes
but i have a problem with the rear suspension. its to springy I've had the
springs redone as they were very bad with leaves missing
think the problems now with dampers . the soft hard ride
system has been disconnected Im wondering if its worth reconnecting it
Can any one tell me what difference in adjustment it makes.
Ive trued up the shoes have a brake pedal that now seems good .
just been for a spin and everything ok car breaks reasonable no more
binding of brakes
but i have a problem with the rear suspension. its to springy I've had the
springs redone as they were very bad with leaves missing
think the problems now with dampers . the soft hard ride
system has been disconnected Im wondering if its worth reconnecting it
Can any one tell me what difference in adjustment it makes.
-
Christopher Carnley
- Posts: 2753
- Joined: Fri Nov 16, 2007 12:00 am
- Location: Yorkshire, United Kingdom
-
Gary Andrews
- Posts: 34
- Joined: Mon May 23, 2016 7:47 am
- Stephen Blakey
- Posts: 1348
- Joined: Thu Feb 02, 1995 12:00 am
- Location: Derbyshire, United Kingdom
Hi Gary,
Welcome to the forum.
Some of the Mallalieus used a vacuum servo with the original rod rear brakes actuated by a single slave cylinder in the manner of the Austin A30 and various early post-war light commercials. Owners of Mallalieus thus equipped report that the brakes are jolly good. I'm planning on using a variation of this system on my own special, with dual master cylinders and a bias bar. I'm hoping to get away without servo assistance but will soon find out once I try it. The maiden voyage is a way off, sadly.
The word on the street is that the rear dampers are quite sensitive to the viscosity of the oil so you may be able to improve things by going to a heavier grade. It must be possible to convert the bellows gubbins to a screw adjustment of the damper rate though I have yet to find anyone who has done that. Lots of folks fit tele's and good luck to them but I prefer the look of the lever arms.
I'm hoping the specials SIG will happen too.
Where are you?
Welcome to the forum.
Some of the Mallalieus used a vacuum servo with the original rod rear brakes actuated by a single slave cylinder in the manner of the Austin A30 and various early post-war light commercials. Owners of Mallalieus thus equipped report that the brakes are jolly good. I'm planning on using a variation of this system on my own special, with dual master cylinders and a bias bar. I'm hoping to get away without servo assistance but will soon find out once I try it. The maiden voyage is a way off, sadly.
The word on the street is that the rear dampers are quite sensitive to the viscosity of the oil so you may be able to improve things by going to a heavier grade. It must be possible to convert the bellows gubbins to a screw adjustment of the damper rate though I have yet to find anyone who has done that. Lots of folks fit tele's and good luck to them but I prefer the look of the lever arms.
I'm hoping the specials SIG will happen too.
Where are you?
-
Mark Taxis
- Posts: 226
- Joined: Mon Apr 02, 2007 2:57 pm
- Location: Queensland Australia
The variable damper setting in my Mk6 is still operational, but in all honesty I never use it, it is always on "soft"
If the ride hight is too high, take a leaf out, the car will be a lot lighter now that the steel body has been removed.
I am also hopeful that the SIG takes off, unfortunately I cannot assist with running it due to work commitments, living in Aus and very basic computer skills.
If the ride hight is too high, take a leaf out, the car will be a lot lighter now that the steel body has been removed.
I am also hopeful that the SIG takes off, unfortunately I cannot assist with running it due to work commitments, living in Aus and very basic computer skills.
Mark Taxis
Sunshine Coast
Queensland 4560
Sunshine Coast
Queensland 4560
-
Gary Andrews
- Posts: 34
- Joined: Mon May 23, 2016 7:47 am
thanks Stephen
a very informative reply
I too don't wish to go tele's unless its the only alternative.
my car sits very high which I like , have concluded the dampers are out
of their normal travel position
I will fabricate longer connecting rods to leaf springs to
compensate for this and see if that helps
i put sae 30 oil in to start
Mark comments much appreciated
pic of my fast lady attached

a very informative reply
I too don't wish to go tele's unless its the only alternative.
my car sits very high which I like , have concluded the dampers are out
of their normal travel position
I will fabricate longer connecting rods to leaf springs to
compensate for this and see if that helps
i put sae 30 oil in to start
Mark comments much appreciated
pic of my fast lady attached

-
John Robins
- Posts: 1208
- Joined: Tue Jan 01, 1985 12:00 am
- Location: Staffordshire, United Kingdom
-
Gary Andrews
- Posts: 34
- Joined: Mon May 23, 2016 7:47 am
Thanks John
Its getting there I like to think it looks like a late 20s early 30s race
style car now after a lot of blood sweet and tears

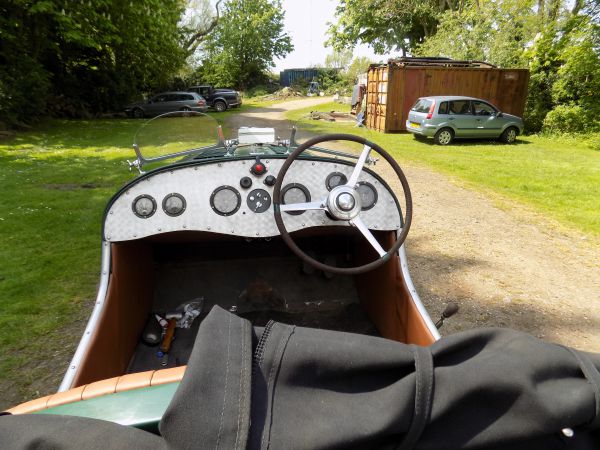

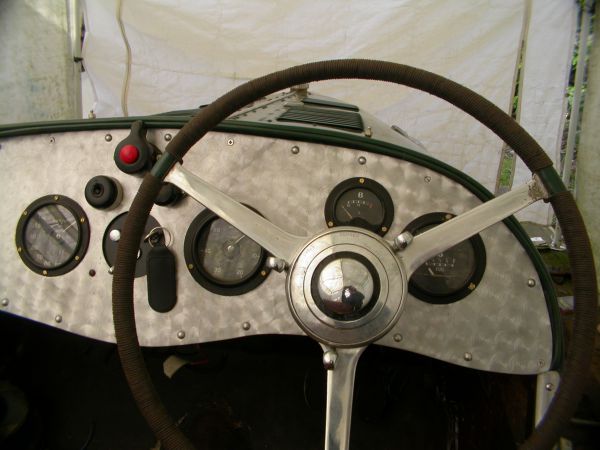

I also made the aluminium dash and all of the gauges except for the
original speedo and ignition switch pod and laced the steering wheel with
cord for the right look

Its getting there I like to think it looks like a late 20s early 30s race
style car now after a lot of blood sweet and tears
I also made the aluminium dash and all of the gauges except for the
original speedo and ignition switch pod and laced the steering wheel with
cord for the right look

- Stephen Blakey
- Posts: 1348
- Joined: Thu Feb 02, 1995 12:00 am
- Location: Derbyshire, United Kingdom
Lovely pictures. How did you make those flanges on the front of the instruments? I've got a machinist pal waiting for me to produce a design for a little press tool to make some but there might be an easier way of doing it?
Re the dampers, I was reading Harry Rose's piece, Review 79 January 1966, on the Bradley MKVI, often referred to as the first MKVI special (do please all correct me if this is the usual case of the facts not fitting the story as I'm about to quote it elsewhere) and thought this extract might be of interest;
"The ride control has been discarded and the shock absorbers modified by the simple expedient of washering the valves and refilling with heavier oil."
P.S. There's a lot of Aldi tools being used on my project too e.g. I'm using their right-angle drill drive to drill the chassis where there is no space even for the air drill. The 8mm bits going through not-mild-steel must be way beyond its design remit but it's still going.
It makes you realise what a fantastic achievement it was for those chaps building specials 50 years ago when only a fraction of these DIY tools existed.
Re the dampers, I was reading Harry Rose's piece, Review 79 January 1966, on the Bradley MKVI, often referred to as the first MKVI special (do please all correct me if this is the usual case of the facts not fitting the story as I'm about to quote it elsewhere) and thought this extract might be of interest;
"The ride control has been discarded and the shock absorbers modified by the simple expedient of washering the valves and refilling with heavier oil."
P.S. There's a lot of Aldi tools being used on my project too e.g. I'm using their right-angle drill drive to drill the chassis where there is no space even for the air drill. The 8mm bits going through not-mild-steel must be way beyond its design remit but it's still going.
It makes you realise what a fantastic achievement it was for those chaps building specials 50 years ago when only a fraction of these DIY tools existed.
-
James O'Neil
- Posts: 209
- Joined: Sat Sep 05, 2015 11:00 pm
- Location: County Durham, United Kingdom
Hi Stephen,
It's not just the special builders that managed to achieve great things with limited resources. I remember helping my father, when I must have been in my early teens, to decoke the engine of his current car, which was not such a simple task as it sounds, as it did not have a removable cylinder head. The facilities he had were primitive - all done outside, car raised manually and supported on wooden blocks, a very basic array of tools. No Machine Mart or Aldi in those days! He would have been green with envy if he could have foreseen what I now have in my garage (and he was an engineer, unlike me).
(Of course, this may be just another false memory, like my recollection of how a B60 engine should be expected to be capable of propelling the vehicle it's installed in.)
Regards,
James
It's not just the special builders that managed to achieve great things with limited resources. I remember helping my father, when I must have been in my early teens, to decoke the engine of his current car, which was not such a simple task as it sounds, as it did not have a removable cylinder head. The facilities he had were primitive - all done outside, car raised manually and supported on wooden blocks, a very basic array of tools. No Machine Mart or Aldi in those days! He would have been green with envy if he could have foreseen what I now have in my garage (and he was an engineer, unlike me).
(Of course, this may be just another false memory, like my recollection of how a B60 engine should be expected to be capable of propelling the vehicle it's installed in.)
Regards,
James
-
Gary Andrews
- Posts: 34
- Joined: Mon May 23, 2016 7:47 am
Stephen

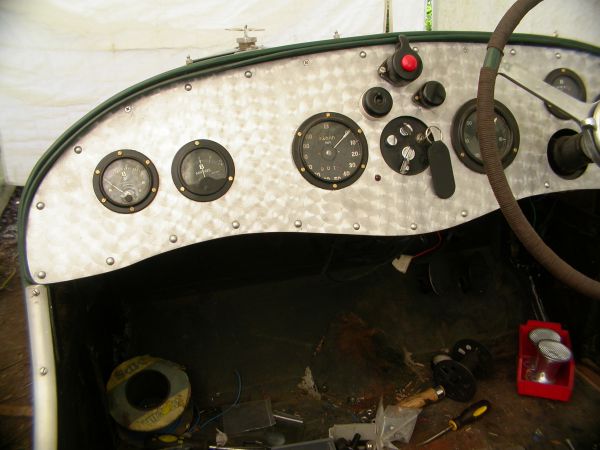

I made the gauges using second hand aircraft / military gauge bodies
which had the bezels / flanges
fitted the gauges i wanted into these
made new dial faces to match the mk 6 speedo
the original mk 6 speedo I added a bezel taken from an old military
gauge.
the temp gauge was a real pain my original capillary tube was broken.
i first tried to make an electric sensor one but because im still +
earth it just did not seem to work correctly. so I went back to capillary
and built the gauge into a military housing
on ride height. hopefully tomorrow going to make new
longer rear damper connecting levers to compensate the higher ride
height . im thinking of reconnecting the old soft /hard ride
system possibly in the near future if the levers dont sort my problem
I agree the right angle drill drive is a very useful tool
I like good old tools but do use drill bit sets and cordless drills from
aldi .
my specials mainly been on breeze blocks with wooden packers whilst
working on her .
I made the gauges using second hand aircraft / military gauge bodies
which had the bezels / flanges
fitted the gauges i wanted into these
made new dial faces to match the mk 6 speedo
the original mk 6 speedo I added a bezel taken from an old military
gauge.
the temp gauge was a real pain my original capillary tube was broken.
i first tried to make an electric sensor one but because im still +
earth it just did not seem to work correctly. so I went back to capillary
and built the gauge into a military housing
on ride height. hopefully tomorrow going to make new
longer rear damper connecting levers to compensate the higher ride
height . im thinking of reconnecting the old soft /hard ride
system possibly in the near future if the levers dont sort my problem
I agree the right angle drill drive is a very useful tool
I like good old tools but do use drill bit sets and cordless drills from
aldi .
my specials mainly been on breeze blocks with wooden packers whilst
working on her .
-
Gary Andrews
- Posts: 34
- Joined: Mon May 23, 2016 7:47 am
last weekend made longer rear damper connecting levers and its
made a big difference. but i think i need heavier oil in dampers all round
used sae 30 to start any ideas what thickest I can go to 50. 80 90
140 ?
my wheels are said to be WO 3 litre they are 19 inch and running
6.00 x 650 tires is 36 psi front 38 psi rear pressure about right ?.
looking at new tires either 650/700-19 ENSIGN B5:
or blockley 650 -19 anyone have opinions on tires to suit
made a big difference. but i think i need heavier oil in dampers all round
used sae 30 to start any ideas what thickest I can go to 50. 80 90
140 ?
my wheels are said to be WO 3 litre they are 19 inch and running
6.00 x 650 tires is 36 psi front 38 psi rear pressure about right ?.
looking at new tires either 650/700-19 ENSIGN B5:
or blockley 650 -19 anyone have opinions on tires to suit
-
Christopher Carnley
- Posts: 2753
- Joined: Fri Nov 16, 2007 12:00 am
- Location: Yorkshire, United Kingdom
- John Murch
- Posts: 1586
- Joined: Sat Jun 05, 1976 11:00 pm
- Location: London, United Kingdom
-
Gary Andrews
- Posts: 34
- Joined: Mon May 23, 2016 7:47 am
Hi John
the 62 mm wheels where not an easy fit
new spline hubs designed from scratch had to be made on front and
rear. was a lot of work .
I would have gone 72 mm if I had known but I bought the 62 mm wheels
after being reassured by someone who should know whats what that
they were the type i needed.
to me it looks far better than the original mk 6 wheels or modern
type wire wheels and where possible i like to use old parts to give the
right look and feel although Spinners where made from scratch but to
old style
the 62 mm wheels where not an easy fit
new spline hubs designed from scratch had to be made on front and
rear. was a lot of work .
I would have gone 72 mm if I had known but I bought the 62 mm wheels
after being reassured by someone who should know whats what that
they were the type i needed.
to me it looks far better than the original mk 6 wheels or modern
type wire wheels and where possible i like to use old parts to give the
right look and feel although Spinners where made from scratch but to
old style
