JohnWilliams6437
Joined: 21 Jan 2003
Posts: 54
Location: Derbyshire, United Kingdom
|
 Posted: Thu Jun 29, 2017 5:59 pm Post subject: Exhaust Systems |
 |
|
On my 3/4.5 the system is:
Downpipe from 4.5 manifold
4 bolt flange into silencer
ditto out to tail pipe.
The silencer is 'hanging on two circular clamps which hang from brackets off the chassis.
All in all very solid- which in a way is slightly worrying as 'modern' cars seem to suspend the systems on 'elastic'
I realize it will all flex with the chassis but?
Should i worry ?
J W. |
|
John Murch
Joined: 05 Jun 1976
Posts: 1567
Location: London, United Kingdom
|
| Posted: Thu Jun 29, 2017 7:41 pm Post subject: |
|
|
Mine is much the same, I used to think I should do something different, but it all seems to function ok
John |
|
Robert Craven
Joined: 09 Apr 2004
Posts: 554
Location: Swansea, United Kingdom
|
| Posted: Thu Jun 29, 2017 10:01 pm Post subject: |
|
|
| Mine too is much the same and it hasn't been a problem. but when I first got the car I was warned to be careful not to bang the exhaust on something solid when reversing because the rigidity of the system might crack the manifold. |
|
Chris Card
Guest
|
| Posted: Thu Jun 29, 2017 10:12 pm Post subject: |
|
|

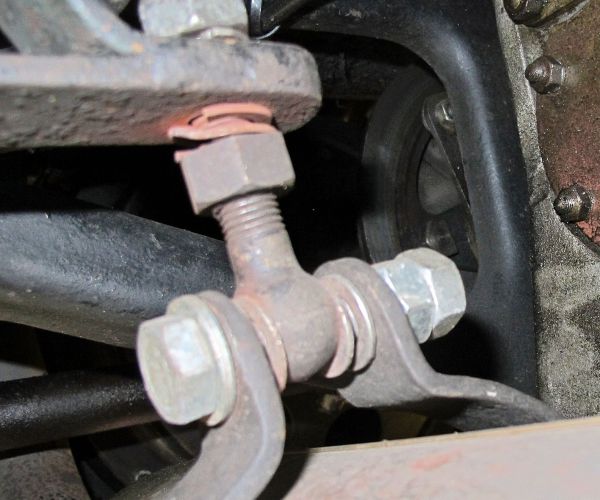

Following advice from Elmdown Engineering, I have a large semi compressed spring washer either side of the chassis mounting bolts and on the silencer clamps. Lock nuts ensure that nothing comes undone. This gives a bit of flexibility to the exhaust suspension.
Chris
 |
|
