Mk Brake Intermediate Shaft Levers

Christopher Davis · Post by **Christopher Davis** » Sat Feb 12, 2022 3:31 pm

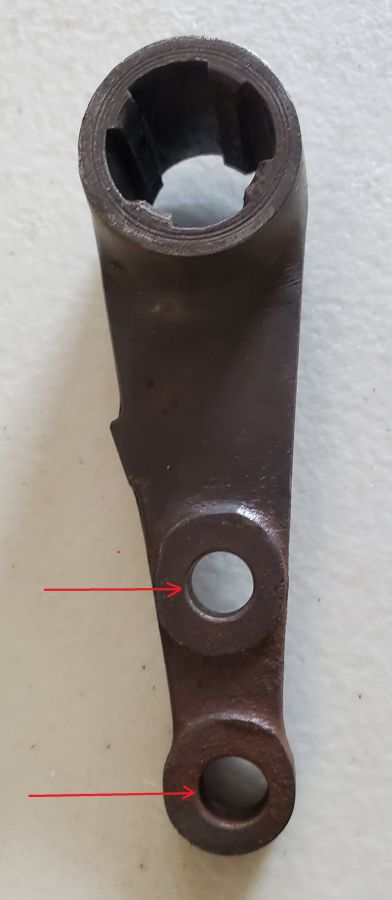

Can anyone provide insights on the correct/original diameter of the bearing pin holes of the Intermediate Shaft Levers?

Christopher Carnley · Post by **Christopher Carnley** » Sat Feb 12, 2022 5:25 pm

5/16" or .312". If the jaws of the clevis are worn then the pin should be replaced by an oversize.

Some were being made by Ristes in Nottingham.

The original pins are high grade case hardened steel and should have been oiled at service, but rarely were.
